XG Test Devices

XGP hardware consists of a few generations of XG device models. The XG device is a modular Telcom device with the capability of testing and monitoring the quality of experience of mobile networks which can be centrally managed and controlled. It is ideal for deployment testing, site testing, drive testing and long-term performance monitoring. Due to the extensible architecture of XG devices, it is easily customizable for the testing environment minimizing the fabrication lead time.

How XG Devices Work

The key element of the XG device is the programmable RF radios. These programmable RF radios come with different technologies and form factors, starting from 2G to the latest edition of 5G. The onboard controller allows the device to communicate with the XG cloud platform for any incoming execution commands and housekeeping activities.

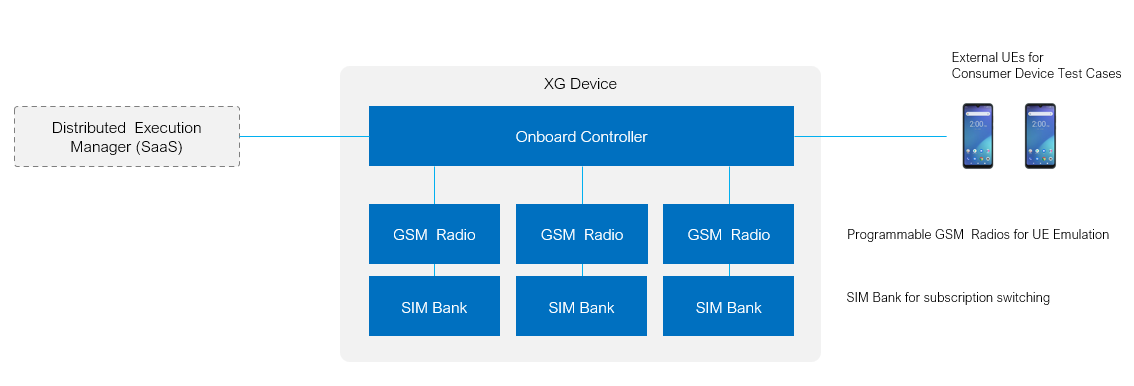

Whats Inside the Box

Android Commercial UEs can be connected externally to the device via USB and allows XGP to run test executions through the XG cloud platform.

XG Device Features

  • Sequential and Parallel Automations
  • Realtime reporting of automation results
  • Local scheduling of automation programs
  • Offline execution (store and forward)
  • AT commands and High-level commands (Macros)
  • Expandable command-set
  • GNSS capability for road testing
  • Heartbeat reporting
  • Self diagnostics and reporting
  • Remote diagnostics server
  • SIM Bank and Selector for each module
  • ESIM / EUICC* for selected modules
  • Signal monitor for each module
  • Power consumption monitor for module
  • Hard reset and power down for each module

XG Device Models

MC010

XG device with VoWiFi and SIP capability built-in. include 3 RF radios 3 SIM banks, where 1st RF radios capable of VoWiFi and 2nd and 3rd RF radios supports 2G/3G and 4G. MC010 includes a SIP client as well.

Cellular Networks Supported Bands
5G NR 5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n41/n78/n79
5G NR SA: n1/n3/n5/n7/n8/n20/n28/n38/n41/n78/n79
4G FDD: B1/B3/B5/B7/B8/B20
TDD: B38/B40/B41
WCDMA B1/B2/B8
GSM/EDGE B3/B8

Supported Functions : Voice Call, SMS, USSD, GPS, DATA, HTTP/HTTPS, SMTP, FTP, UDP, TCP/IP, VoLTE, VoWiFi, CSFB, FOTA, SMSoIP, SIP

MC010

MC009

MC009 is the 3rd Generation 5G capable XG device which comes with 3 RF radios with 3 SIM banks.

Cellular Networks Supported Bands
5G NR 5G NR NSA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n78
5G NR SA n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79
4G FDD: B1/B3/B5/B7/B8/B20
TDD: B38/B40/B41
WCDMA B1/B2/B8
GSM/EDGE B3/B8

Supported Functions : Voice Call, SMS, USSD, GPS, DATA, HTTP/HTTPS, SMTP, FTP, UDP, TCP/IP, VoLTE, CSFB, FOTA, SMSoIP

MC009

MC008

Specialized on IoT communication technologies such as Nb-IoT and CAT-M1.

Cellular Networks Supported Bands
Cat M1/ Cat NB1 FDD: B1/ B2/ B3/ B4/ B5/ B8/ B12/ B13/ B18/ B19/ B20/ B25①/ B26*/ B28
TDD: B39 (for Cat M1 only)
4G FDD: B1/B3/B5/B7/B8/B200
TDD: B38/B40/B41
WCDMA B1/B5/B8
GSM/EDGE GSM 900/1800 MHz

Supported Functions : Voice Call, SMS, USSD, GPS, DATA, WAP/HTTP/HTTPS, SMTP, FTP, UDP, TCP/IP, VoLTE, FOTA, MQTT, PING
